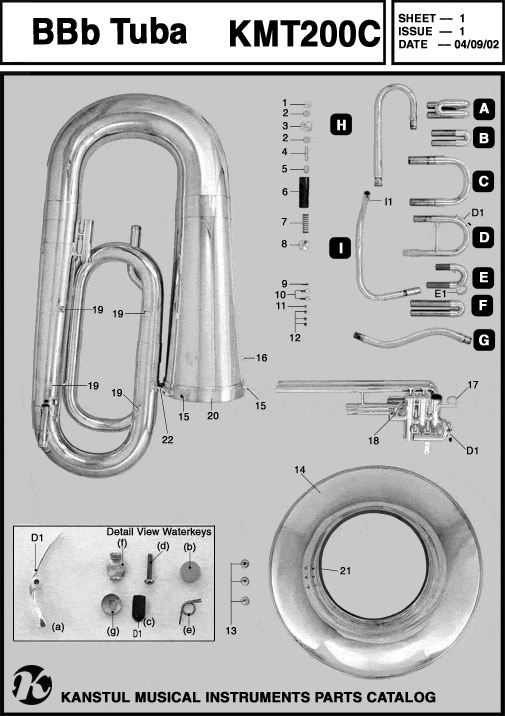

Parts: BBb Tuba 200C
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Finger Tip |
| 2 | Felt |
| 3 | Top Cap |
| 4 |
Stem |
| 5 |
Guide |
| 6 | 1st Valve Piston |
| 6 | 2nd Valve Piston |
| 6 | 3rd Valve Piston |
| 7 | Valve Spring |
| 8 | Bottom Cap |
| 9 |
Stop Screw |
| 10 |
Wing Screws |
| 11 | Screw |
| 12 | Screws |
| 13 | Screws, Bell |
| 14 | Bell |
| 15 | Threaded Socket |
| Ref No. | Description |
|---|---|
| 16 | Brace |
| 17 | Finger Ring |
| 18 | Thumb Ring |
| 19 | Brace |
| 20 |
Female Ring |
| 21 |
Male Ring |
| 22 | Brace |
| A |
1st Slide Complete |
| B |
2nd Slide Complete |
| B1 |
Knob |
| C |
Tuning Slide Complete |
| D |
Mouthpipe – Marching |
| D1 |
Waterkey Assembly ** |
| E | Tune Any Note Slide Complete |
| Ref No. | Description |
|---|---|
| E1 | Thumb Ring |
| F | 3rd Slide Complete |
| G |
6th Branch – Marching |
| H | 6th Branch – Concert |
| I | Mouthpipe – Concert |
| I1 | Brace |
| ** | Waterkey Assembly |
| W (a) | Waterkey |
| W (b) | Cork |
| W (c) | Bumper |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
