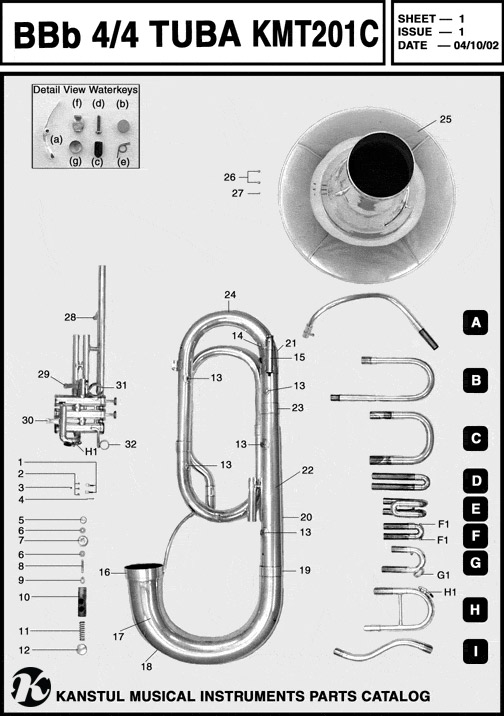

Parts: BBb 4/4 Tuba 201C
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Screws, Wing |
| 2 | Screws |
| 3 | Screw |
| 4 |
Screw, Stop |
| 5 |
Finger Tip |
| 6 |
Felt |
| 7 |
Top Cap |
| 8 |
Stem |
| 9 | Guide |
| 10 | 1st Valve Piston |
| 10 | 2nd Valve Piston |
| 10 |
3rd Valve Piston |
| 11 | Valve Spring |
| 12 | Bottom Cap |
| 13 | Brace |
| 14 | Brace |
| 15 | Mouthpiece Outside Slide |
| 16 | Ferrule |
| 17 | Branch #1 |
| 18 | Guard Wire |
| Ref No. | Description |
|---|---|
| 19 | Ferrule |
| 20 | Guard Wire |
| 21 | Guard Wire |
| 22 | Branch #2 |
| 23 | Ferrule |
| 24 | Branch #3 |
| 25 |
Bell |
| 26 |
Screw |
| 27 | Screw |
| 28 |
Brace |
| 29 |
Brace |
| 30 |
Brace |
| 31 |
Finger Ring |
| 32 |
Thumb Ring |
| A |
Concert Mouthpipe |
| B | 7th Branch – Concert |
| C | Tuning Slide Complete |
| D | 3rd Slide Complete |
| E |
1st Slide Complete |
| Ref No. | Description |
|---|---|
| F | 2nd Slide Complete |
| F1 | Thumb Ring |
| G | Tune Any Note Slide Complete |
| G1 | Knob |
| H | Mouthpipe – Marching |
| H1 | Waterkey Assembly |
| I | 7th Branch – Marching |
| ** | Waterkey Assembly |
| W (a) | Waterkey |
| W (b) | Cork |
| W (c) | Bumper |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
