Parts: Tuba 902/4C

We accept parts orders in writing only – either by fax at 714-563-1661, or by email: sales@kanstul.com

Please include a description of the part, the finish and the serial number of the instrument.

Please note: Our Online Parts Catalog will be occasionally updated. If your instrument is not listed here please send us any available information (such as serial number and description) so that we may better help you.

Regarding F. Besson instruments: When inquiring about parts or service, please include a serial number and description of the horn. We only have parts for Kanstul-made Besson instruments.

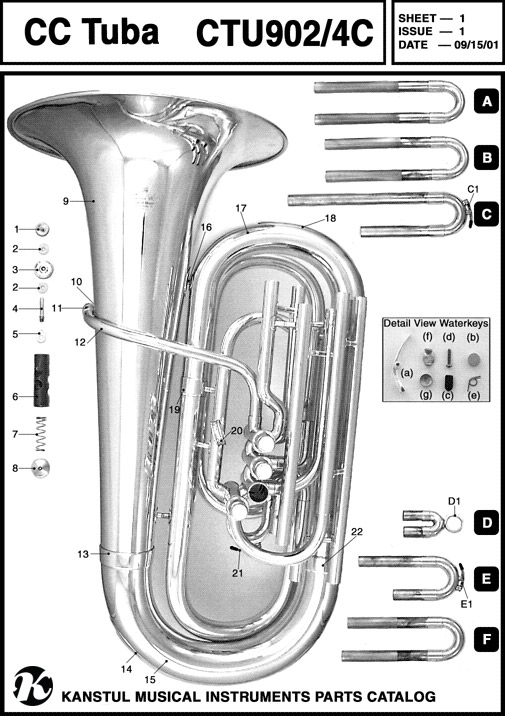

Ref No. Description
1 Finger Tip
2 Felt
3 Top Cap
4
Stem
5
Valve Spring
6
Guide
7 1st Valve Piston
7 2nd Valve Piston
7 3rd Valve Piston
7 4th Valve Piston
8 Bottom Cap
9
Bell
10
Mouthpipe Brace
11 Receiver
12 Mouthpipe
13 Ferrule
14 Guard
Ref No. Description
15 Branch 1
16 Brace
17 Branch 2
18 Guard
19 Ferrule
20 Thumb Ring
21
Waterkey Assembly **
22
Ferrule
A 1st Valve Slide Complete
B
3rd Valve Slide Complete
C
4th Valve Slide Complete (Waterkey)
C1
Waterkey Assembly
D
2nd Valve Slide Complete
D1 Finger Ring
Ref No. Description
E 3rd Slide Complete (Waterkey)
E1 Waterkey Assembly **
F
4th Valve Slide Complete
** Waterkey Assembly
W (a) Waterkey
W (b) Cork
W (c) Bumper
W (d)  Screw
W (e) Spring
W (f) Bridge
W (g) Nipple
