Parts: Tuba 902/4B

We accept parts orders in writing only – either by fax at 714-563-1661, or by email: sales@kanstul.com

Please include a description of the part, the finish and the serial number of the instrument.

Please note: Our Online Parts Catalog will be occasionally updated. If your instrument is not listed here please send us any available information (such as serial number and description) so that we may better help you.

Regarding F. Besson instruments: When inquiring about parts or service, please include a serial number and description of the horn. We only have parts for Kanstul-made Besson instruments.

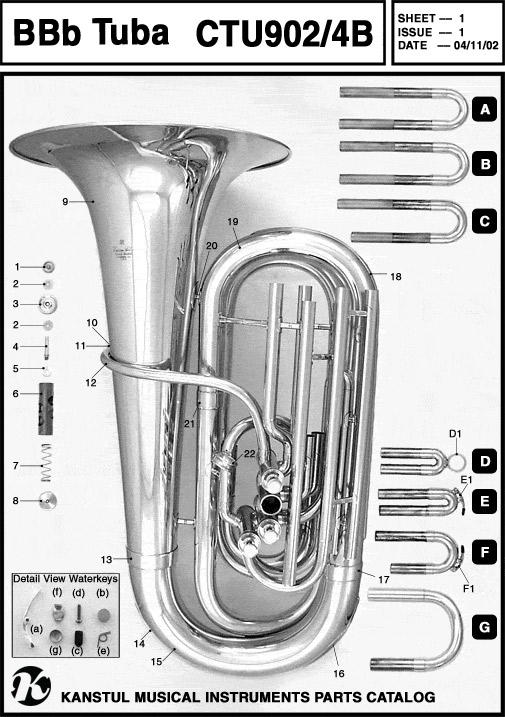

Ref No. Description
1 Pearl Finger Tip
2 Felt
3 Top Cap
4
Stem
5
Valve Spring
6
Guide
7 1st Valve Piston
7 2nd Valve Piston
7 3rd Valve Piston
7 4th Valve Piston
8 Bottom Cap
9
Bell
10
Mouthpipe Brace
11 Receiver
12 Mouthpipe
13 Ferrule
Ref No. Description
14 Guard
15 Branch 1
16 Guard Wire
17 Ferrule
18 Guard Wire
19 Branch 2
20 Brace
21
Ferrule
22
Thumb Ring
A 1st Slide Complete
B
3rd Slide Complete
C
4th Slide Complete
D
2nd Slide Complete
D1 Finger Ring
Ref No. Description
E 4th Slide Complete (2)
E1 Waterkey Assembly **
F
3rd Slide Complete (2)
F1 Waterkey Assembly **
G Tuning Slide
** Waterkey Assembly
W (a) Waterkey
W (b) Cork
W (c) Bumper
W (d)  Screw
W (e) Spring
W (f) Bridge
W (g) Nipple
