Parts: Tuba 902/3B

We accept parts orders in writing only – either by fax at 714-563-1661, or by email: sales@kanstul.com

Please include a description of the part, the finish and the serial number of the instrument.

Please note: Our Online Parts Catalog will be occasionally updated. If your instrument is not listed here please send us any available information (such as serial number and description) so that we may better help you.

Regarding F. Besson instruments: When inquiring about parts or service, please include a serial number and description of the horn. We only have parts for Kanstul-made Besson instruments.

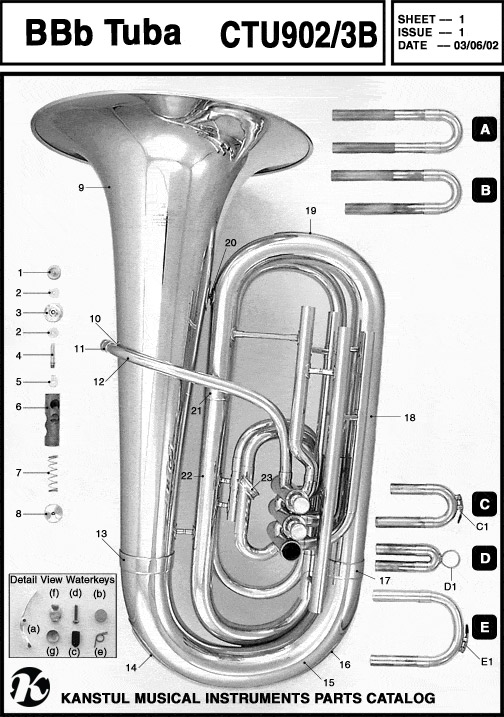

Ref No. Description
1 Pearl Finger Tip
2 Felt
3 Top Cap
4
Stem
5
Guide
6 1st Valve Piston
6 2nd Valve Piston
6 3rd Valve Piston
7 Valve Spring
8 Bottom Cap
9
Bell
10
Mouthpipe Brace
11 Receiver
12 Mouthpipe
Ref No. Description
13 Bell Ferrule
14 Cap
15 Branch 1
16 Guard Wire
17 2nd Branch Ferrule
18 Branch 2
19 Guard Wire
20 Bell Brace
21
3rd Branch Ferrule
22
Branch 3
23 Thumb Ring
A
#3 Upper Slide
B
#1 Slide
C
#3 Lower Slide
Ref No. Description
C1 Waterkey Assembly**
D #2 Slide
D1 Ring Pull
E
Tuning Slide
E1 Waterkey Assembly**
** Waterkey Assembly
W (a) Waterkey
W (b) Cork
W (c) Bumper
W (d)  Screw
W (e) Spring
W (f) Bridge
W (g) Nipple
