Parts: Trumpet 923

We accept parts orders in writing only – either by fax at 714-563-1661, or by email: sales@kanstul.com

Please include a description of the part, the finish and the serial number of the instrument.

Please note: Our Online Parts Catalog will be occasionally updated. If your instrument is not listed here please send us any available information (such as serial number and description) so that we may better help you.

Regarding F. Besson instruments: When inquiring about parts or service, please include a serial number and description of the horn. We only have parts for Kanstul-made Besson instruments.

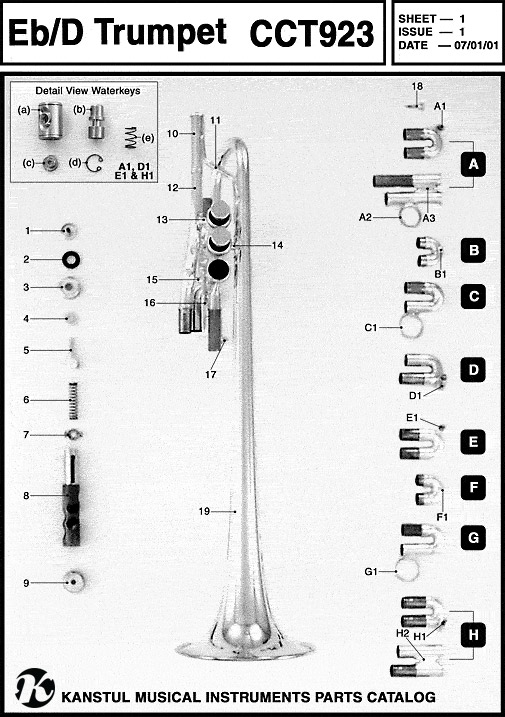

Ref No. Description
1 FingerTip
2 Rubber Bumper
3 Top Cap
4
Felt
5
Stem
6
Valve Spring
7
Guide
8
1st Valve Piston
8
2nd Valve Piston
8
3rd Valve Piston
9
Bottom Cap
10
Receiver
11 Small Z Brace
12
Mouthpipe
13
Brace
14
Brace
15
Brace
16
Finger Hook
17 Threaded Stop Socket
Ref No. Description
18 Stop Screw
19 Bell
A 3rd Slide Complete (Key Eb)
A 3rd Slide End (Key Eb)
A 3rd Slide Main (Key Eb)
A1 Waterkey Assembly **
A2 Finger Ring
A3 3rd Slide Brace
B 2nd Slide Complete (Key Eb)
B1 Slide Knob
C 1st Slide Complete (Key Eb)
C1 Thumb Ring
D Tuning Slide Complete (Key Eb)
D1 Waterkey Assembly **
E 3rd Slide Complete (Key D)
E1 Waterkey Assembly **
Ref No. Description
F 2nd Slide Complete (Key D)
F1 Slide Knob
G 1st Slide Complete (Key D)
G1 Thumb Ring
H Tuning Slide Complete (Key D)
H Tuning Slide End (Key D)
H
Tuning Slide Main (Key D)
H1 Waterkey Assembly **
H2 Tuning Slide Brace
** Waterkey Assembly **
W (a) Body
W (b)  Piston
W (c) Retainer
W (d) Clip
W (e) Spring
