Parts: Trumpet 1523

We accept parts orders in writing only – either by fax at 714-563-1661, or by email: sales@kanstul.com

Please include a description of the part, the finish and the serial number of the instrument.

Please note: Our Online Parts Catalog will be occasionally updated. If your instrument is not listed here please send us any available information (such as serial number and description) so that we may better help you.

Regarding F. Besson instruments: When inquiring about parts or service, please include a serial number and description of the horn. We only have parts for Kanstul-made Besson instruments.

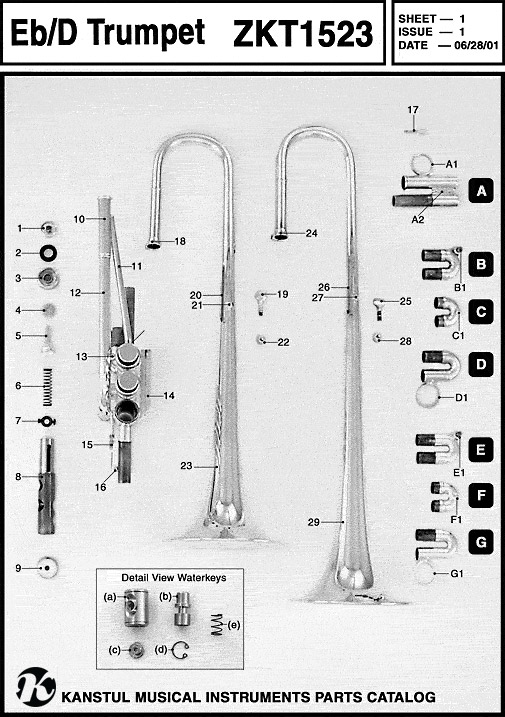

Ref No. Description
1 FingerTip
2 Rubber Bumper
3 Top Cap
4
Felt
5
Stem
6
Valve Spring
7
Guide
8
1st Valve Piston
8
2nd Valve Piston
8
3rd Valve Piston
9
Bottom Cap
10
Receiver
11 Brace
12 Mouthpipe
13 Brace
14 Rail Inside
15 Finger Hook Assembly
16 Threaded Stop Socket
17 Stop Screw
Ref No. Description
18 Threaded Lock Ring
19 Wing Screw
20 Outside Rail
21 Socket
22 Screw
23 Bell (Key Eb)
24 Threaded Lock Ring
25
Wing Screw
26
Outside Rail
27 Socket
28
Screw
29
Bell (Key D)
A
3rd Slide Main
A1
Finger Ring
A2
Brace 3rd Slide Main
B
3rd Slide End (Key Eb)
B1 Waterkey Assembly **
C 2nd Slide Complete (Key Eb)
Ref No. Description
C1 Slide Knob
D
1st Slide Complete (Key Eb)
D1 Thumb Ring
E 3rd Slide End (Key D)
E1 Waterkey Assembly **
F 2nd Slide Complete (Key D)
F1 Slide Knob
G 1st Slide Complete (Key D)
G1 Thumb Ring
** Waterkey Assembly**
W (a) Body
W (b)  Piston
W (c) Retainer
W (d) Clip
W (e) Spring
