Parts: Trumpet 1520

We accept parts orders in writing only – either by fax at 714-563-1661, or by email: sales@kanstul.com

Please include a description of the part, the finish and the serial number of the instrument.

Please note: Our Online Parts Catalog will be occasionally updated. If your instrument is not listed here please send us any available information (such as serial number and description) so that we may better help you.

Regarding F. Besson instruments: When inquiring about parts or service, please include a serial number and description of the horn. We only have parts for Kanstul-made Besson instruments.

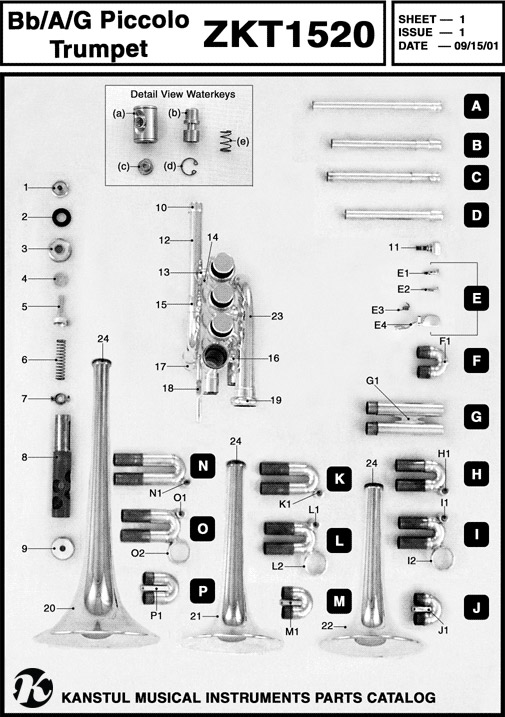

Ref No. Description
1 FingerTip
2 Rubber Bumper
3 Top Cap
4
Felt
5
Stem
6
Valve Spring
7
Guide
8
1st Valve Piston
8
2nd Valve Piston
8
3rd Valve Piston
8
4th Valve Piston
9
Bottom Cap
10
Threaded Lock Ring
11 Wing Screw for Locking Ring
12
Mouthpipe Outside
13
Brace
14
Trigger Bridge
15
Ferrule
16
Brace
17
Ferrule
18
Finger Hook Complete
19
Bell Ring Female
20 Bell (Key G)
21 Bell (Key A)
22 Bell (Key Bb)
23 Bell Tail
24 Bell Ring Male
Ref No. Description
A Cornet Mouthpipe (Key A & G)
B Trumpet Mouthpipe (Key A & G)
C Cornet Mouthpipe (Key Bb)
D
Trumpet Mouthpipe (Key Bb)
E1
Trigger Pivot Screw
E2 Trigger Hinge Screw
E3
Trigger Spring (1st Slide)
E4
Trigger Lever (1st Slide)
F
Trill Crook (4th slide alternate)
F1
Slide Knob
G
4th Valve Main Slide
G1
4th Valve Main Slide Brace
H
4th Valve End Slide (Key Bb)
H1
Waterkey Assembly **
I
3rd Valve Slide (Key Bb)
I1
Waterkey Assembly **
I2
Finger Ring
J 1st Valve Slide (Key Bb)
J1 Trigger Pivot (1st Slide)
K 4th Valve End Slide (Key A)
Ref No. Description
K1
Waterkey Assembly **
L 3rd Valve Slide (Key A)
L1 Waterkey Assembly **
L2 Finger Ring
M 1st Valve Slide (Key A)
M1 Trigger Pivot (1st Slide)
N 4th Valve End Slide (Key G)
N1 Waterkey Assembly **
O 3rd Valve Slide (Key G)
O1 Waterkey Assembly **
O2 Finger Ring
P 1st Valve Slide (Key G)
P1 Trigger Pivot (1st Slide)
** Waterkey Assembly
W (a) Body
W (b)  Piston
W (c) Retainer
W (d) Clip
W (e) Spring
