Parts: Marching Euphonium 295

We accept parts orders in writing only – either by fax at 714-563-1661, or by email: sales@kanstul.com

Please include a description of the part, the finish and the serial number of the instrument.

Please note: Our Online Parts Catalog will be occasionally updated. If your instrument is not listed here please send us any available information (such as serial number and description) so that we may better help you.

Regarding F. Besson instruments: When inquiring about parts or service, please include a serial number and description of the horn. We only have parts for Kanstul-made Besson instruments.

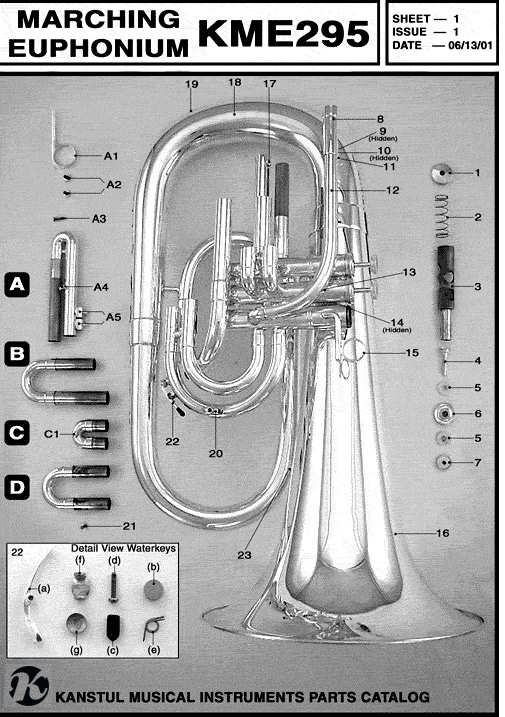

Ref No. Description
1 Bottom Cap
2 Valve Spring
3 1st Valve Piston
3 2nd Valve Piston
3 3rd Valve Piston
4 Stem
5 Felt
6 Top Cap
7 Finger Tip
8 Receiver
9
Brace Small Socket
10
Brace Rod
11 Brace Large Socket
12 Mouthpipe
13 Balluster Brace Small
Ref No. Description
14 Balluster Brace Large
15 Finger Ring
16 Bell
17 Stop Knob
18 Guard
19 Branch
20 Lyre Holder
21 Lyre Holder Screw
22
Waterkey Assembly **
23
Bell Brace
A 1st Slide Complete
A1
Push Rod
A2
Push Rod Screw
A3
Stop Screw
Ref No. Description
A4 Threaded Stop Socket
A5 Push Rod Holders
B Tuning Slide Complete
C
2nd Slide Complete
C1 Slide Knob
D 3rd Slide Complete
** Waterkey Assembly
W (a) Waterkey
W (b) Cork
W (c) Bumper
W (d)  Screw
W (e) Spring
W (f) Bridge
W (g) Nipple
