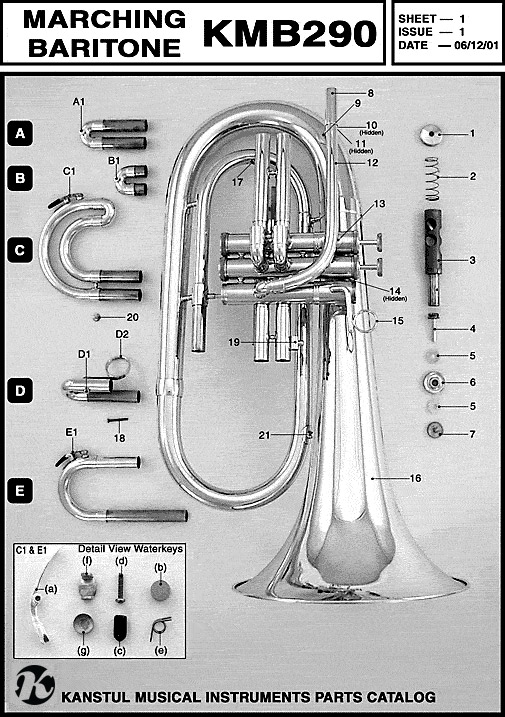

Parts: Marching Baritone 290

We accept parts orders in writing only – either by fax at 714-563-1661, or by email: sales@kanstul.com

Please include a description of the part, the finish and the serial number of the instrument.

Please note: Our Online Parts Catalog will be occasionally updated. If your instrument is not listed here please send us any available information (such as serial number and description) so that we may better help you.

Regarding F. Besson instruments: When inquiring about parts or service, please include a serial number and description of the horn. We only have parts for Kanstul-made Besson instruments.

Ref No. Description
1 Bottom Cap
2 Valve Spring
3 1st Valve Piston
3 2nd Valve Piston
3 3rd Valve Piston
4 Stem
5 Felt
6 Top Cap
7 Finger Tip
8 Receiver
9
Brace Large Socket
10
Brace Small Socket
11
Brace Rod
12
Mouthpipe
13 Balluster Brace
14 Balluster Brace
Ref No. Description
15 Finger Ring
16 Bell
17 Threaded Stop Socket
18 Stop Screw
19 Lyre Holder
20 Lyre Holder Screw
21
Brace
A
1st Slide Complete
A1 Slide Knob
B
2nd Slide Complete
B1 Slide Knob
C 3rd Slide Complete
C1 Waterkey Assembly **
D Tune Any Note Slide
D1 Slide Knob
Ref No. Description
D2
Thumb Ring
E Tuning Slide Complete
E1 Waterkey Assembly**
** Watery Assembly (C1 & E1)
W (a) Waterkey
W (b) Cork
W (c) Bumper
W (d)  Screw
W (e) Spring
W (f) Bridge
W (g) Nipple
