Parts: BBb Tuba Convertible 202C

We accept parts orders in writing only – either by fax at 714-563-1661, or by email: sales@kanstul.com

Please include a description of the part, the finish and the serial number of the instrument.

Please note: Our Online Parts Catalog will be occasionally updated. If your instrument is not listed here please send us any available information (such as serial number and description) so that we may better help you.

Regarding F. Besson instruments: When inquiring about parts or service, please include a serial number and description of the horn. We only have parts for Kanstul-made Besson instruments.

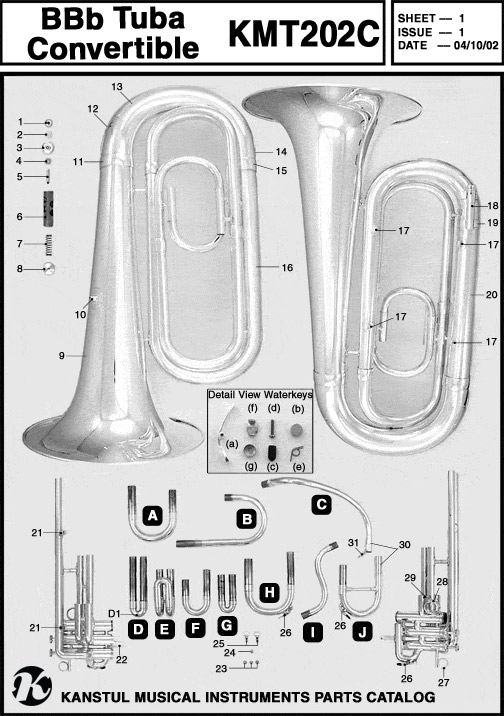

Ref No. Description
1 FingerTip
2 Felt
3 Top Cap
4
Stem
5
Valve Spring
6
Guide
7 1st Valve Piston
7 2nd Valve Piston
7 3rd Valve Piston
8 Bottom Cap
9
Bell
10
Brace
11 Ferrule
12 Branch #1
13 Guard Cap
14 Guard Wire
15 Ferrule
16 Branch #2
17 Brace
18 Mouthpipe Outside Slide
Ref No. Description
19 Brace
20 Guard Wire
21 Brace
22 Brace
23 Screws
24 Screw
25
Screws, Wing
26
Waterkey Assembly **
27 Thumb Ring
28
Finger Ring
29 Thumb Ring
30 Receiver
31 Mouthpipe Brace
A Tuning Slide Complete
B 7th Branch – Concert
C Mouthpipe – Concert
Ref No. Description
D 3rd Slide Complete
D1 Knob
E
1st Slide Complete
F 3rd Slide Complete
G 2nd Slide Complete
H Tuning Slide Complete
I 7th Branch – Marching
Mouthpipe – Marching
** Waterkey Assembly
W (a) Waterkey
W (b) Cork
W (c) Bumper
W (d)  Screw
W (e) Spring
W (f) Bridge
W (g) Nipple
